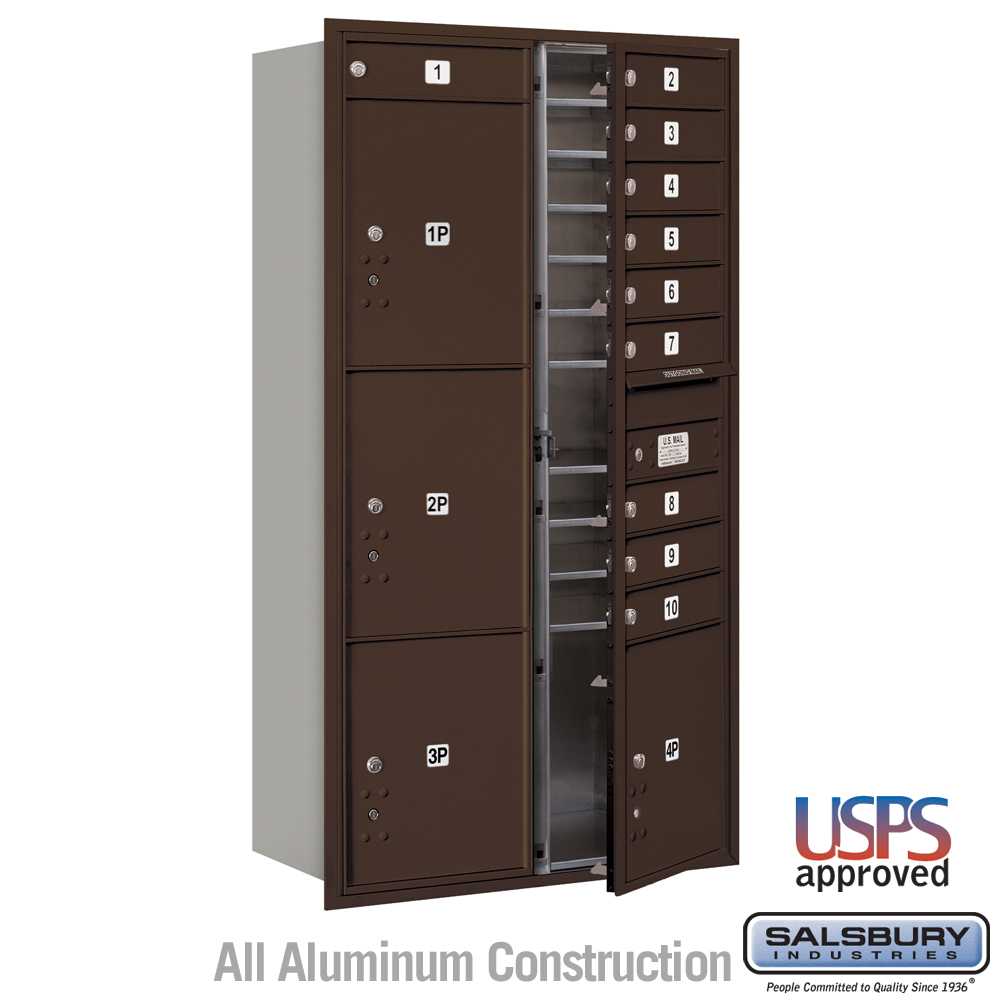

Salsbury Maximum Height Recessed Mounted 4C Horizontal Mailbox with 10 Doors and 4 Parcel Lockers in Bronze with USPS Access - Front Loading

Model # 3716D-10ZFU
LEAD TIME  usually ships within 1-2 weeks

$2690.00

Volume Discounts

QuantityPrice
2 - 5$2,285.00
6 +$2,150.00
Contact Us for Bulk Pricing
31.125" W x 57.125" H x 16.5" D
165 lbs


More Information

Salsbury 3700 Series Recessed Mounted 4C Horizontal Mailboxes - Front Loading - U.S.P.S. Access

Features

  • Recessed Mounted 4C Horizontal Mailboxes are U.S.P.S. Approved
  • Manufactured by Salsbury Industries to USPS-STD-4C Specifications
  • Ideal for apartments, commercial buildings and residential developments
  • Required for new construction and major renovations
  • For indoor or outdoor use
  • Constructed of heavy duty aluminum and stainless steel hardware
  • Feature a durable powder coated finish available in aluminum, bronze, gold and sandstone

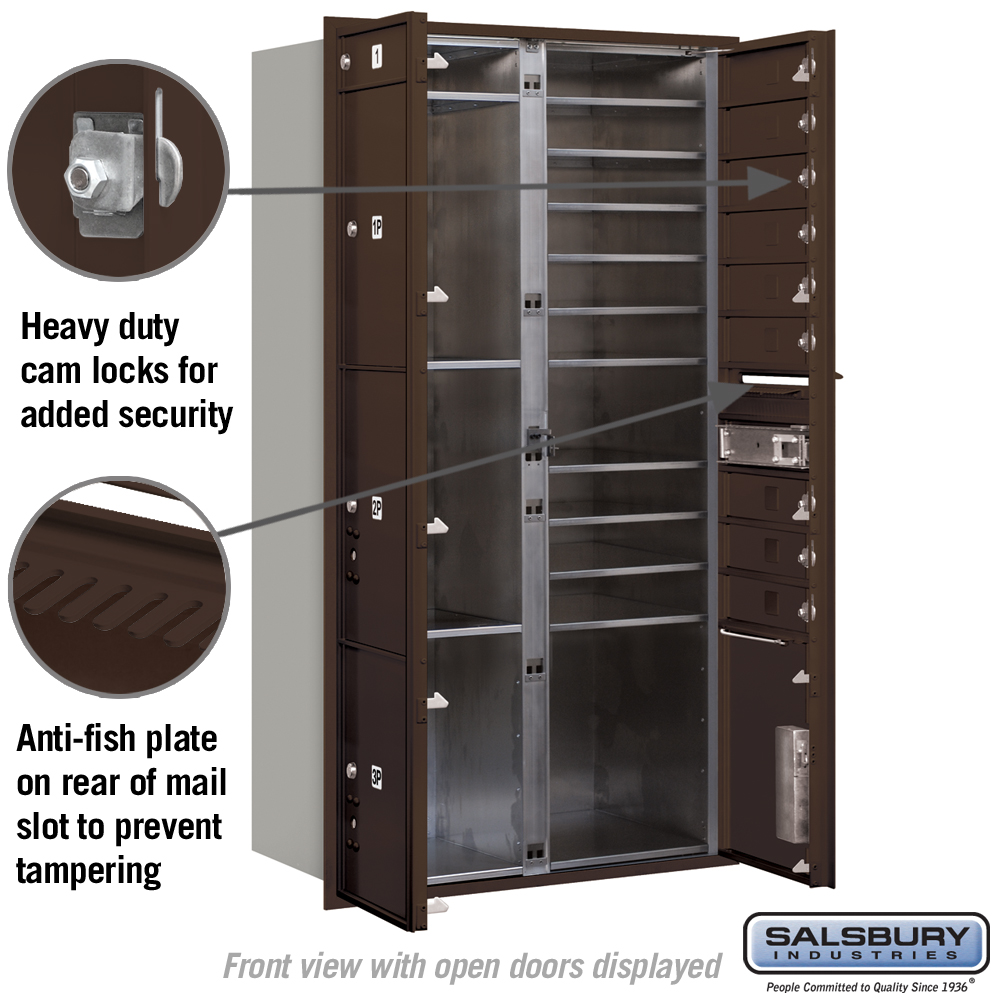

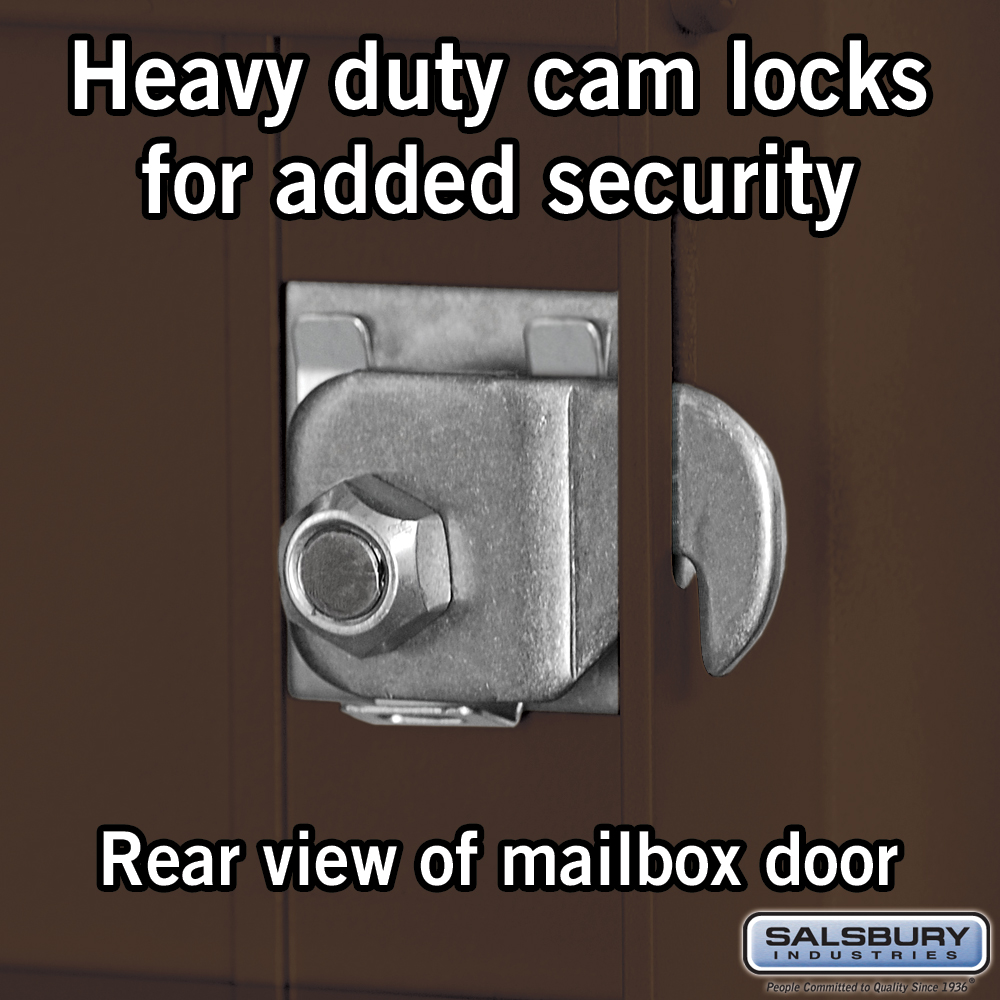

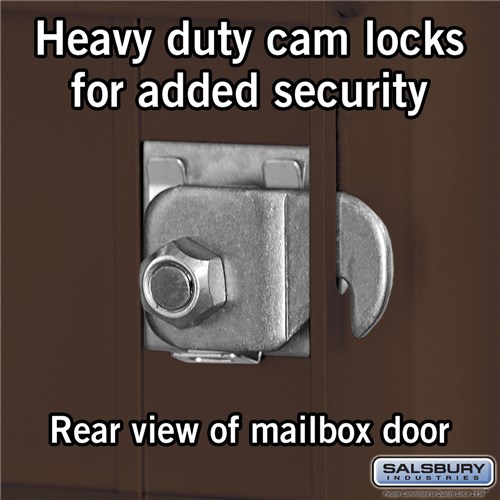

  • Doors include a heavy duty cam lock with a dust/rain shield and 3 keys
  • MB1 doors are 3-1/4" H x 13-1/4" W, MB2 doors are 6-3/4" H x 13-1/4" W, MB3 doors are 10-1/4" H x 13-1/4" W and MB4 doors are 13-3/4" H x 13-1/4" W
  • Available in three (3) MB1 equivalent door high units to fifteen (15) MB1 equivalent door high units, plus our popular maximum height units (56-3/4”H)
  • Available in configurations that are 1 door wide (single column) and 2 doors wide (double column)
  • U.S.P.S. standard 4C requires a minimum of 1 parcel locker for every 10 tenant compartments
  • Parcel lockers must be a minimum of 15" H to meet the 1:10 ratio. Once this ratio has been met, smaller parcel lockers may also be added
  • Fully integrated and stand-alone parcel lockers are available in varying sizes: PL3 (10-1/4" H), PL4 (13-3/4" H), PL4.5 (15-1/2" H), PL5 (17-1/4" H) and PL6 (20-3/4" H)

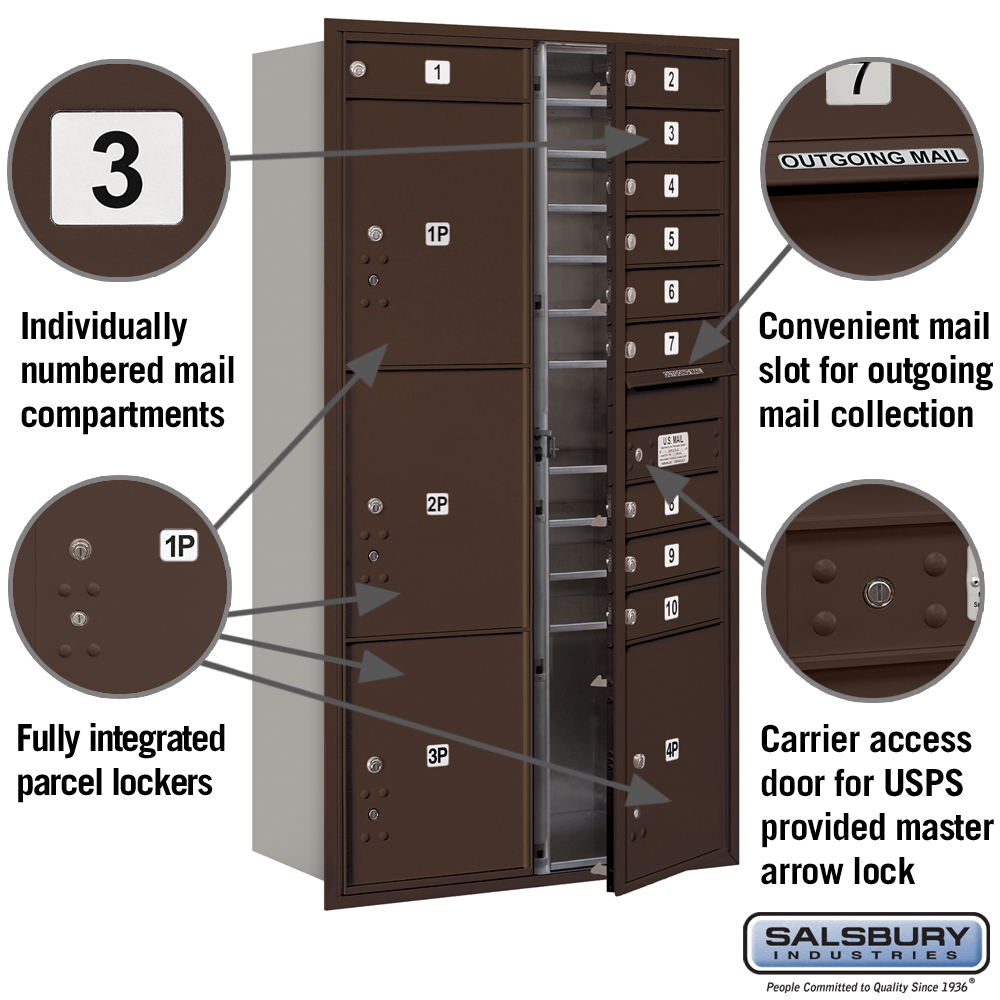

  • Most units include a compartment for outgoing mail collection and is labeled “Outgoing Mail”
  • Outgoing mail compartment / carrier access door includes the U.S.P.S. master lock access door (lock installed by the U.S.P.S.) and cannot be used for mail distribution
  • Outgoing mail compartment includes a 10-3/4" W x 3/4" H mail slot and weather protection hood
  • Include factory installed 3/4" W x 1/4" D trim and a solid rear cover
  • Include a 4C horizontal mailbox connector kit to easily connect multiple recessed mounted 4C horizontal mailbox units (hardware included)
  • ADA height compliant units available - ADA compliance guidelines
  • Salsbury Industries is an ISO 9001:2015 certified company and has excelled in the field of manufacturing since 1936

Explore the Model in 3D


  1. arrows_icon_product_page  Use left / right arrows within gray bar above to view product features
  2. question_icon_product_page​   To reset model to default position, click icon  - then click reset button
  3. AR_icon_product_page​  To view in augmented reality, click icon - scan QR code with mobile device
  4. Fullscreen_icon_product_page​   To view model in a larger window, click the fullscreen icon

Options

  • Custom engraved placards
  • Custom engraved doors - regular
  • Custom engraved doors - black filled
  • Replacement locks
  • Additional keys
  • Key blanks

Downloads

Videos

  • 4C Standard Horizontal Mailbox Video
  • Installation Video – Installing 4C Mailboxes
  • Installation Video – Tenant Lock Replacement
  • Installation Video – Tenant Door Replacement
  • Installation Video – Locating Tenant Keys
