4C Custom Horizontal Mailboxes - Front or Rear Loading
Following simple guidelines, custom units can be configured with a combination of varying sizes of mailbox doors and parcel locker doors.
1) Determine the number of openings required using MB1, MB2, MB3 and MB4 mailbox doors and PL3, PL4, PL4.5, PL5 and PL6 parcel locker doors.

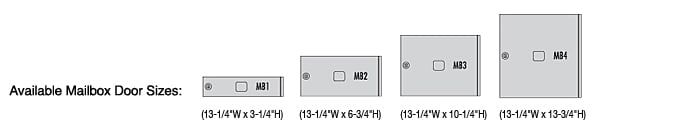

Note 1: MB1 is the smallest mailbox door available and MB4 is the largest mailbox door available.

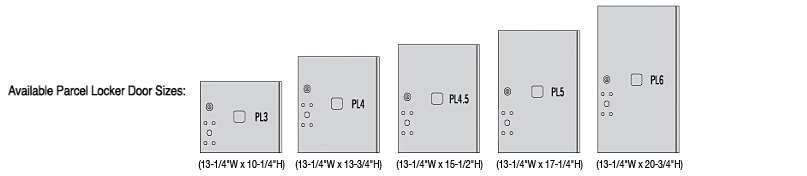

Note 2: PL3 is the smallest parcel locker door available and PL6 is the largest parcel locker door available.

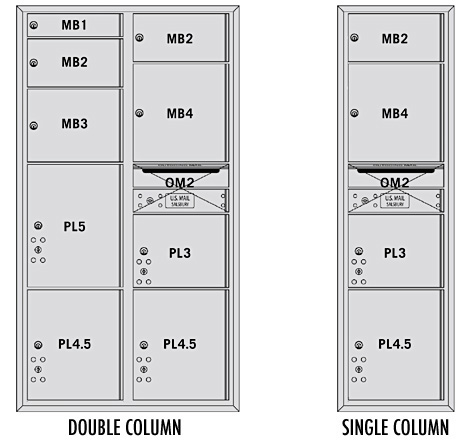

2) Configure your requirements into a double or single column unit.
Note 1: Configure your requirements into a one wide (single column) or two (2) wide (double column) unit and into equivalent standard mailbox door heights.
Note 2: The outgoing mail compartment (OM2 and OM3) includes the master commercial lock and cannot be used for mail distribution.
3) Specify front or rear loading.
Contact us for rough opening dimensions and layout specifications.

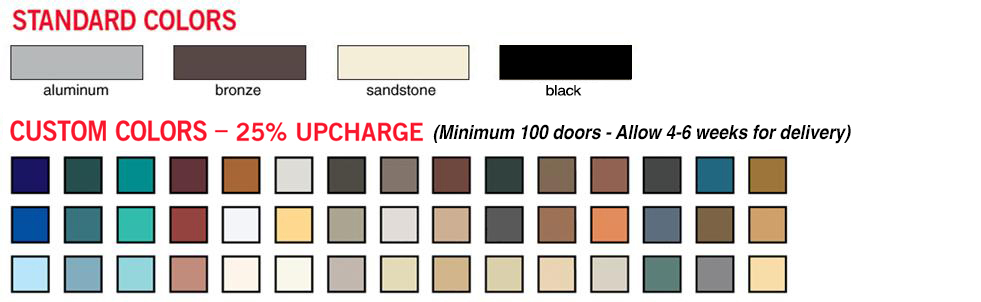

4) Specify Standard or Custom Color.
Contact us for more information about making your mailboxes a custom color. Click to view custom colors
for 4C Horizontal Mailboxes
- Combination Locks
- Mail Slots
- Plexiglass Windows
4C Standard Horizontal Mailbox Video
