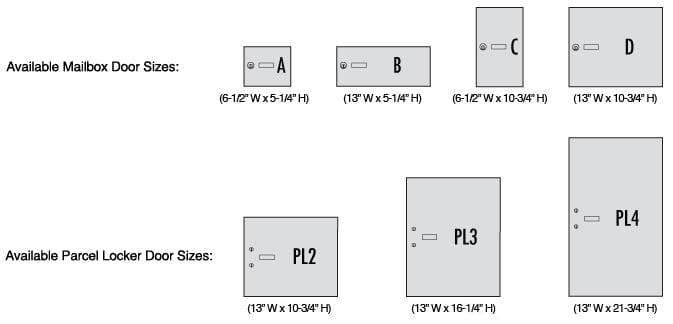

Note 1: 'A' Door is the smallest mailbox door available and 'D' Door is the largest mailbox door available.
Note 2: 'PL2' is the smallest parcel locker door available and 'PL4' is the largest parcel locker door available.
2) Configure requirements to fit a minimum of 2W x 3H standard 'A' doors to a maximum of 5W x 7H standard 'A' doors.

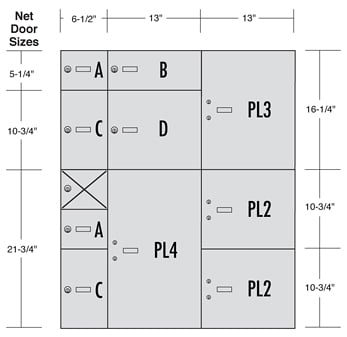

SAMPLE FRONT LOADING UNIT
Note 1: If front loading, door panel swings on a continuous hinge. One mailbox opening ('A' and 'B' doors only) is required for a master postal lock and cannot be used for mail distribution. Units include factory installed 3/4" W x 1/4" D trim and a solid rear cover.
Note 2: If rear loading, all openings are usable (master postal lock not required). Unites include factory installed 3/4" W x 1/4" D trim and a removable rear cover.
Note 3: Tenant locks in the top row of mailboxes must be no more than 67" above the finished floor and the bottom shelf of the lowest row of mailboxes must be no less than 28" above the finished floor. For front loading installations, the U.S.P.S. master arrow lock must be a minimum of 36" and a maximum of 48" above the finished floor. The bottom shelf of parcel lockers must be at least 15" above the finished floor.
3) Specify front or rear loading.
Contact us for rough opening dimensions or layout specifications.
4) Specify Standard or Custom Color.
Contact us for more information about making your mailboxes a custom color. Click to view all available custom colors
for 4B Horizontal Mailboxes.
