Salsbury 4B+ Custom Horizontal Mailboxes - Front or Rear Loading - USPS Access

Model #19800C

Made entirely of aluminum, Salsbury 19800 custom cell phone lockers are available in four (4) different locker door sizes and a variety of configurations.  Each aluminum door includes a five (5) pin cylinder cam lock with three (3) keys or a built-in resettable combination lock and a 2'' W x 5/8'' H clear plastic card holder (card included) to identify the name and/or compartment number. Units are available in a standard powder coated aluminum, bronze or sandstone finish. Custom colors are available as options upon request. Cell phone lockers are ideal for use in health clubs, government facilities, office buildings, schools and other settings where small personal items need to be stored safely and securely.

Note: Minimum order of ten (10) units required for custom cell phone lockers.

Request a Quote

More Information About Salsbury 4B+ Custom Horizontal Mailboxes

4B+ Custom Horizontal Mailboxes - Front or Rear Loading.

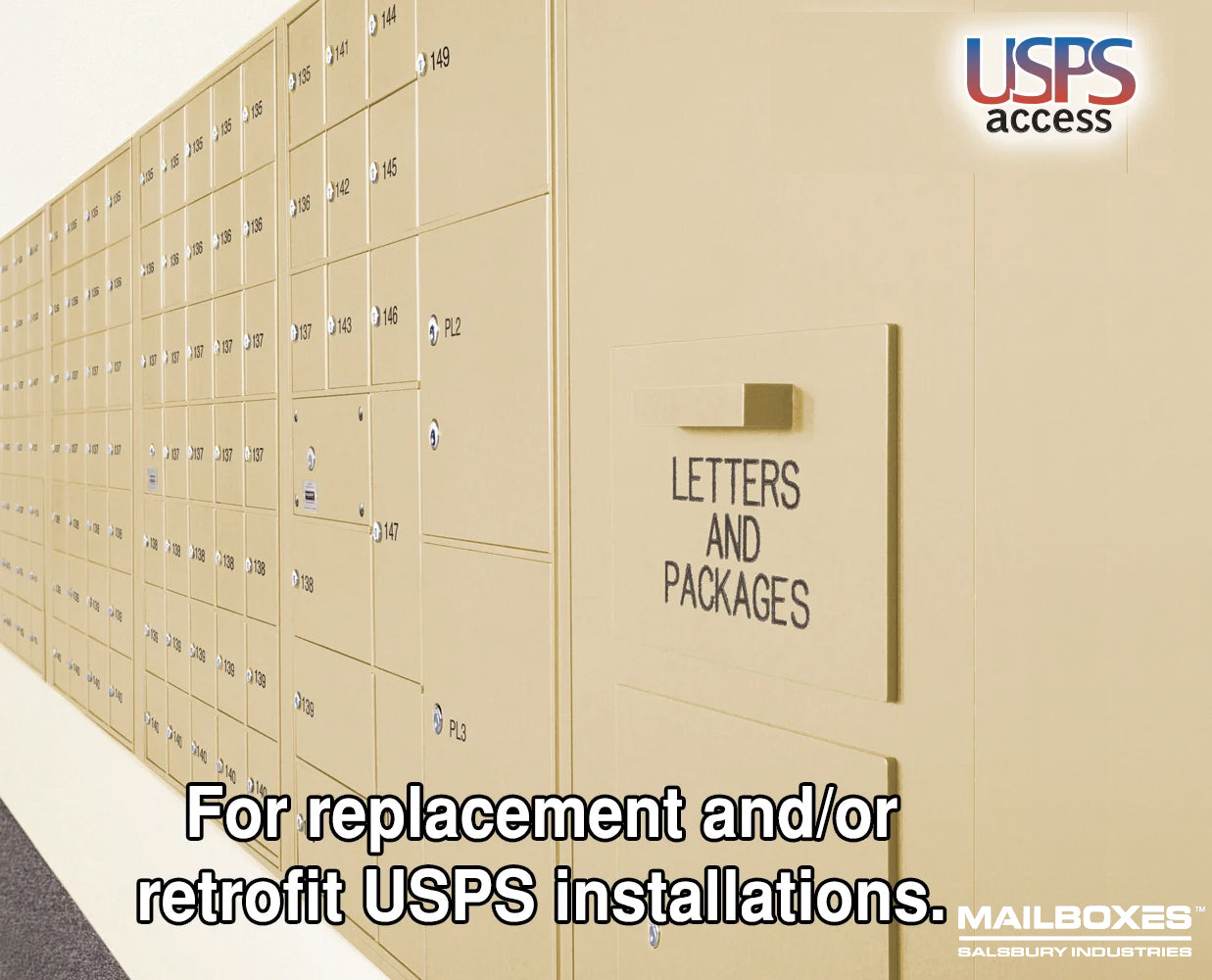

*** 3600 Series 4B+ mailboxes are approved for replacement and/or retrofit installations.  For new construction and major renovations, please see 4C horizontal mailboxes. ***

Following simple guidelines, custom units can be configured with a combination of varying sizes of mailbox doors and parcel locker doors.Note: Minimum order of ten (10) units required for 4B+ Custom Horizontal Mailboxes.

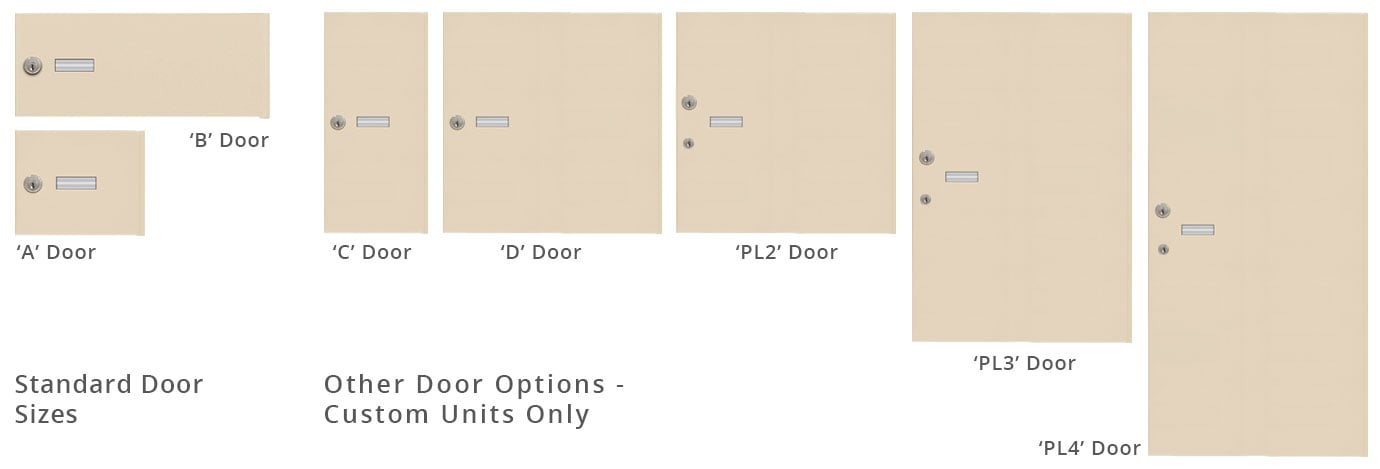

1)  Determine the number of openings required using 'A', 'B', 'C' and 'D' mailbox doors and 'PL2', 'PL3' and 'PL4' parcel locker doors.

USPS Mailbox Height Regulations for Installing Commercial Mailboxes

Note 1:  'A' Door is the smallest mailbox door available and 'D' Door is the largest mailbox door available.

Note 2:  'PL2' is the smallest parcel locker door available and 'PL4' is the largest parcel locker door available.

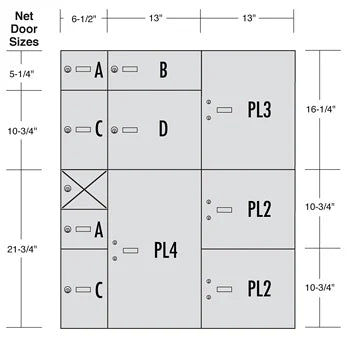

2) Configure requirements to fit a minimum of 2W x 3H standard 'A' doors to a maximum of 5W x 7H standard 'A' doors.

USPS Mailbox Height Regulations for Installing Commercial Mailboxes

Note 1:  If front loading, door panel swings on a continuous hinge.  One mailbox opening ('A' and 'B' doors only) is required for a master postal lock and cannot be used for mail distribution.  Units include factory installed 3/4" W x 1/4" D trim and a solid rear cover.

Note 2:  If rear loading, all openings are usable (master postal lock not required). Units include factory installed 3/4" W x 1/4" D trim and a removable rear cover.

Note 3:  Tenant locks in the top row of mailboxes must be no more than 67" above the finished floor and the bottom shelf of the lowest row of mailboxes must be no less than 28" above the finished floor.  For front loading installations, the U.S.P.S. master arrow lock must be a minimum of 36" and a maximum of 48" above the finished floor.  The bottom shelf of parcel lockers must be at least 15" above the finished floor.

3)  Specify front or rear loading.

Contact us for rough opening dimensions or layout specifications.

4)  Specify Standard or Custom Color:

USPS Mailbox Height Regulations for Installing Commercial Mailboxes

Contact us for more information about making your mailboxes a custom color.  Click to view all available custom colors for 4B+ Horizontal Mailboxes.
